Integration Requests | Catena Telematics API

When a fleet goes through Catena Connect, their telematics provider may not yet be supported (see our Supported Providers List). Rather than leaving the fleet with a dead end, Catena allows them to submit an integration request, signaling demand for that provider and letting you continue their onboarding in the meantime.

Redirect Outcomes

Every Catena Connect session ends with a redirect to one of your configured callback URLs. There are three possible outcomes:

Successful Connection

The fleet connected at least one supported TSP. Catena redirects to your success_redirect_url.

Integration Requested

The fleet’s TSP isn’t supported yet, but they submitted an integration request. Catena redirects to your success_redirect_url with additional parameters.

Failure / Abandoned

The fleet exited the flow without connecting a TSP or submitting an integration request. Catena redirects to your failure_redirect_url.

Integration requests use the success URL. Submitting an integration request is treated as a successful outcome—the fleet completed the available next step. Your success handler must check the status parameter to distinguish a live connection from a pending integration request.

Redirect Examples

Successful connection

https://your-app.com/callback?status=success

Integration requested

https://your-app.com/callback?status=integration-requested&integration_request_id=5c06372b-5b5a-4477-88ee-6cd8d3b55efb

Failure / Abandoned

https://your-app.com/failure?status=failure

Query Parameters

Parameter	Redirect	Description
`status`	All	One of `success`, `integration-requested`, or `failure`.
`integration_request_id`	Integration requested only	Unique ID for the integration request. Use this to correlate redirects with webhook events or support follow-ups.

Handling Integration Requests

When your success handler receives status=integration-requested, the fleet has completed everything they can for now. A typical response:

Acknowledge the Fleet

Display a confirmation message explaining that their ELD provider has been requested and that they’ll be notified when it becomes available.

Store the integration_request_id

Persist the integration_request_id so you can match it against future webhook notifications when the integration goes live.

Grant Temporary Access (Optional)

If your platform supports it, grant the fleet provisional access while the integration is pending. This avoids blocking carriers who are otherwise ready to onboard.

Monitor via Webhooks

Catena will send a webhook notification when the requested integration becomes available. Subscribe to integration request events to automate follow-up workflows.

Partners who require ELD connection for all carriers may use the integration-requested outcome to grant temporary access and queue the carrier for re-onboarding once the integration is live, rather than blocking them entirely.

Fleet Experience in Connect

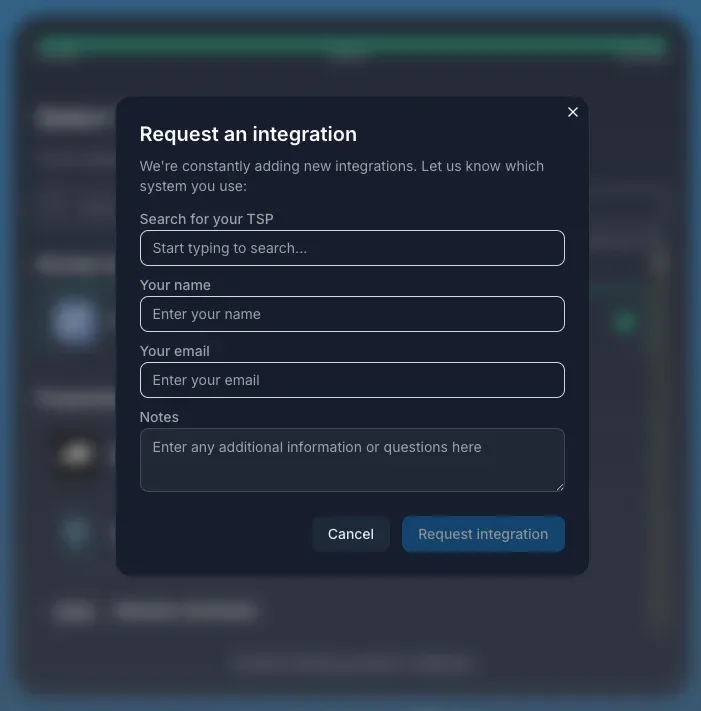

After a fleet submits an integration request, they see a confirmation screen inside Catena Connect:

Confirmation that Catena received the request
Option to return to your platform
Option to add another telematics provider

This ensures fleets aren’t left with an ambiguous dead end—they leave knowing their request was received.

Configuring Callback URLs

Callback URLs are set when creating an invitation via the Organizations API. Both success_redirect_url and failure_redirect_url are required.

curl -X POST \
  --url https://api.catenatelematics.com/v2/orgs/invitations \
  -H 'Authorization: Bearer <token>' \
  -H 'Content-Type: application/json' \
  -d '{
  "fleet_ref": "<your internal fleet id>",
  "success_redirect_url": "https://your-app.com/callback",
  "failure_redirect_url": "https://your-app.com/failure"
}'
